Radon Cage - Large

For building footprints greater than 20000 f² (1860 m²).

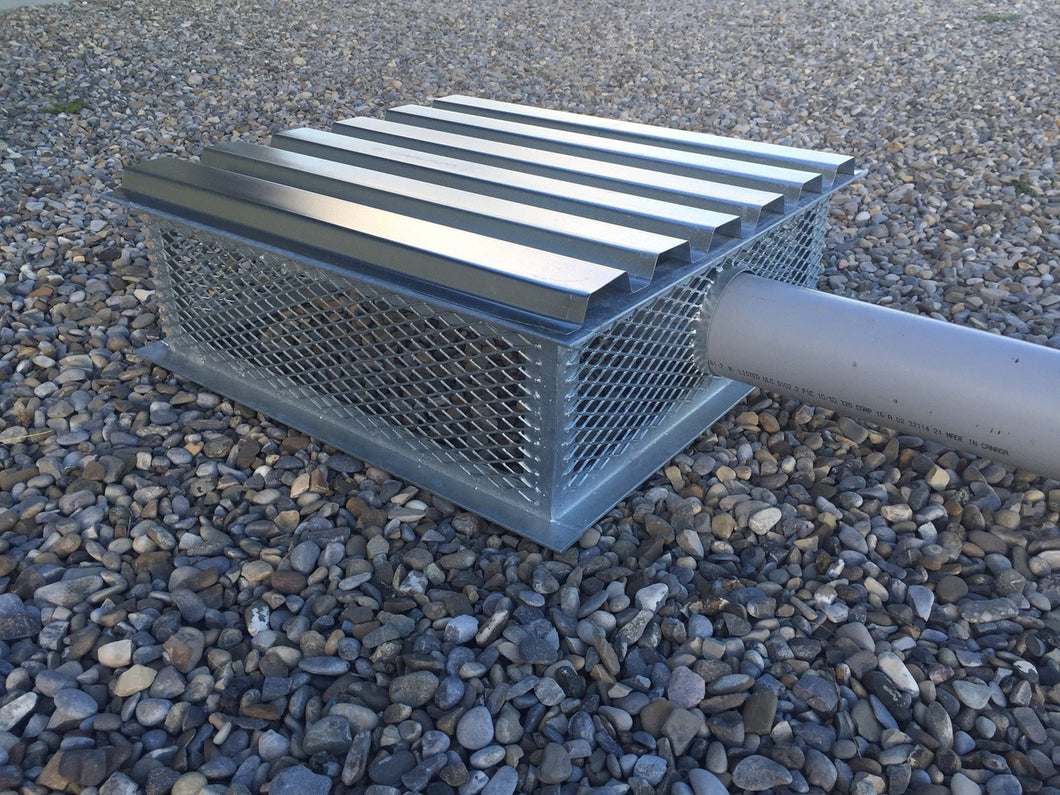

The largest of the radon cage family,  this hot dipped galvanized cage is constructed from angle iron which supports a covering of expanded metal decking.

It measures 36” X 36” X 12” and is fitted with a welded insert ring for an easy and stable installation of the 6” exhaust pipe.

Void-to-aggregate interface is measured at 7 ft².

This suction pit cage meets the prescriptive requirements for the current Alberta and National building code section 6.2.1.1 (1).

This item may take up to 6 weeks for delivery depending on stock.

Ships via freight only and the shipping fee is not included in the price.  Please complete the form in the link below and contact Radon West at info@radonwest.com for a freight shipping quote.

Right click below to open/download the order form for cages requiring a freight quote:

tps://cdn.shopify.com/s/files/1/2777/6594/files/Radon_Suction_Pit_Cage_-_Order_Form.pdf?v=163035589

Cage order form

Right click below to open/download shop drawings for the large cage:

Large cage shop drawing
