For building footprints up to 20000 f² (1860 m²) or where multiple suction pits are required. This is the middle-sized cage.

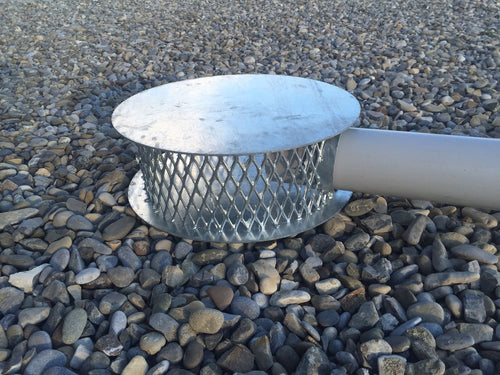

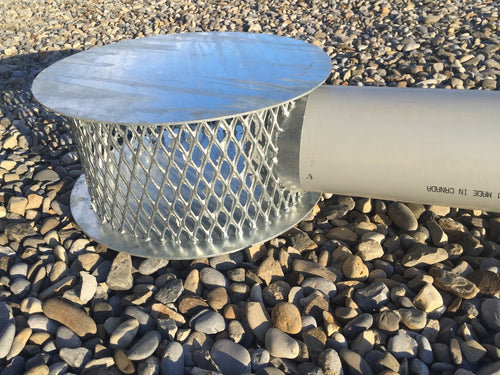

It is constructed from a rolled cylinder of expanded metal decking with a sheet metal top and bottom and then hot-dipped galvanized for durability.

It has an 18" diameter, is 8” tall and is fitted with a welded insert ring for easy and stable installation of the 6” exhaust pipe.

This suction pit cage meets the prescriptive requirements for the current Alberta and National building code section 6.2.1.1 (1).

This item may take up to 6 weeks for delivery depending on stock.

Ships via Canada Post when possible. If shipping to a construction site or other location where Canada Post can not ship to, the shipping fee is not included in the price. Please complete the form in the link below and contact Radon West at info@radonwest.com for a freight shipping quote.

Right click below to open/download the order form for cages requiring a freight quote:

tps://cdn.shopify.com/s/files/1/2777/6594/files/Radon_Suction_Pit_Cage_-_Order_Form.pdf?v=163035589

Cage order form

Right click below to open/download shop drawings for the medium cage:

Medium cage shop drawing
